M1 SERIES II STEREO D/A
M1 SERIES II STEREO D/A
Advanced Delta-Sigma conversion for exceptional detail and clarity
Enhanced power regulation minimizes noise for superior sound quality
Modular design allowing optional upgrades, including network streaming
Premium chassis construction with custom Stillpoints feet for improved performance and refined aesthetics
Superb build quality, hand-crafted by Bricasti Design in the USA
Optional VC Analog Volume Control card for direct amplifier connection
Finish available in Classic black, Argento silver, and Platinum

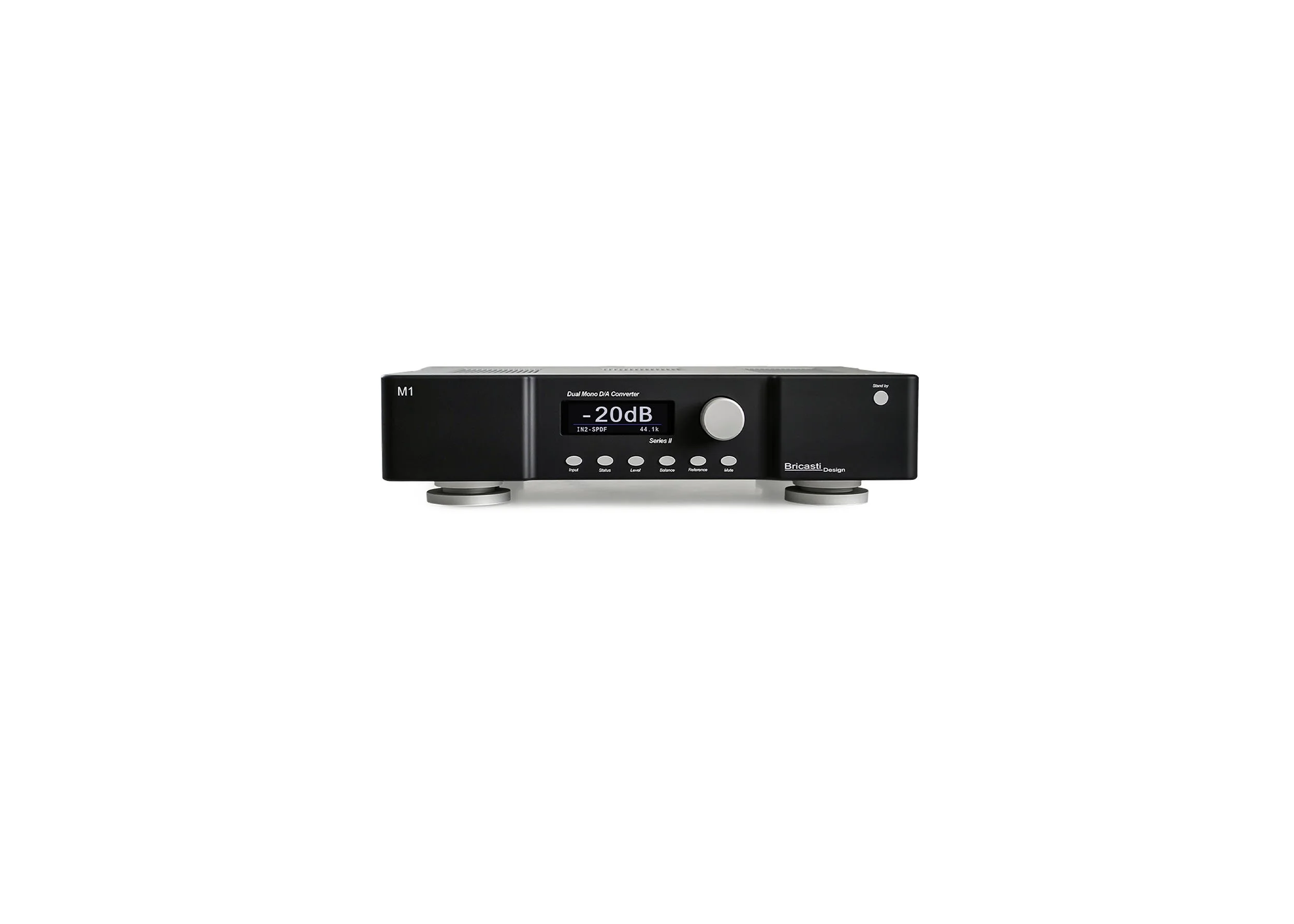

The M1S2 (Series II) introduces a fresh design and upgraded features to the M1 series, succeeding the legacy M1SE model. This new version reflects Bricasti Design’s extensive expertise in high-precision D/A engineering, optimized for audio purists. Focused on simplicity and performance, the M1S2 features the latest MDx processor, high-current twin linear power supplies with larger performance capacitors, and a robust, handcrafted chassis milled from solid aluminum. With a taller profile than its predecessor, the M1S2 also includes upgraded Stillpoints feet as standard, setting new performance benchmarks for the series.
EXTREME
PERFORMANCE

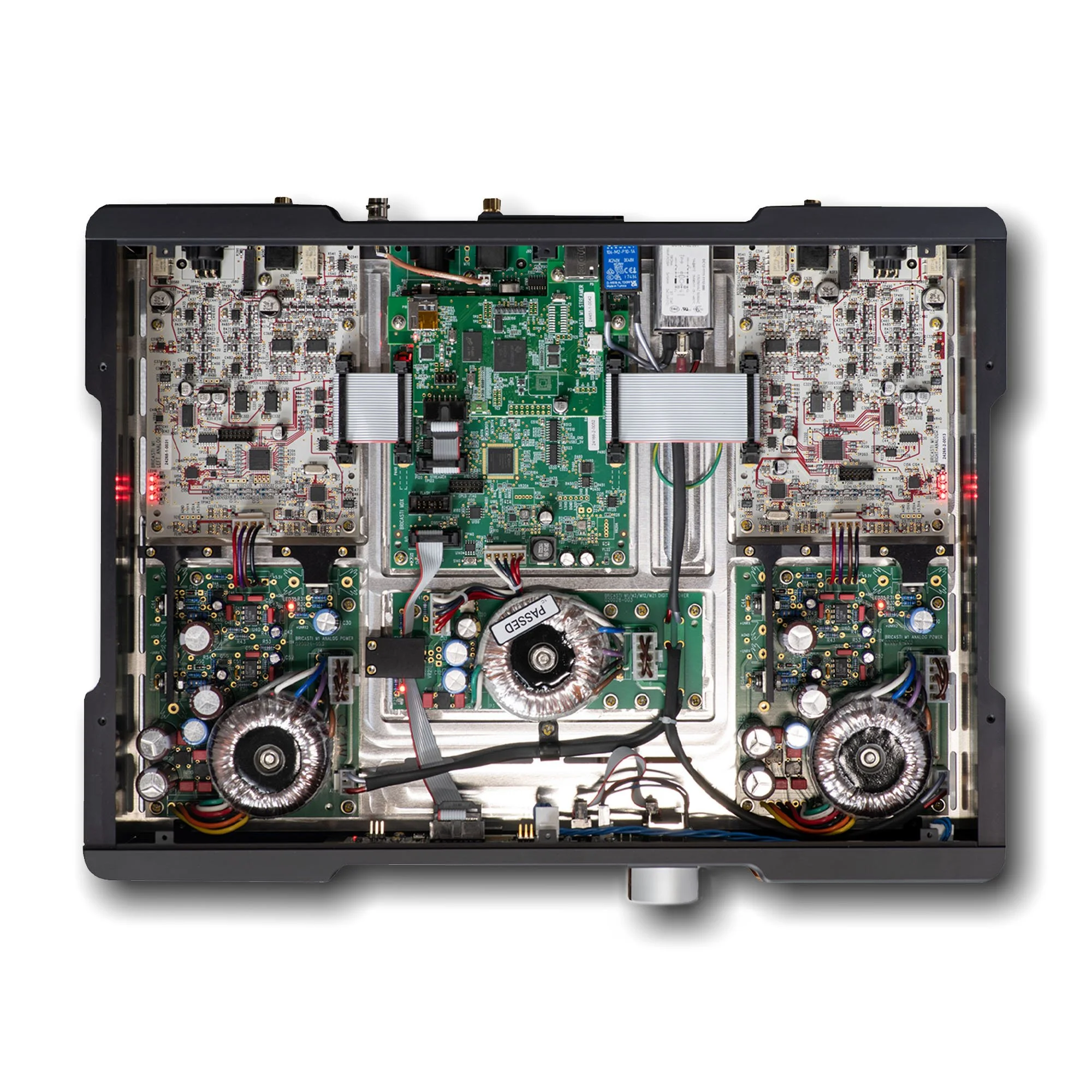

A high-performance linear power architecture delivers a clean signal with exceptionally low noise and ample headroom. With point-to-point wiring and integrated Stillpoints isolation directly in the chassis, music is rendered with enhanced depth, detail, and dimensionality. Improved spatial cues and separation create a truly immersive listening experience.
PURITY
OF SIGNAL
The M1S2 utilizes Bricasti Design’s latest proprietary MDx digital platform, advanced clocking algorithms, and filter technology to deliver exceptional performance without the need for sample rate converters, thereby preserving native signals. The digital section is paired with a pristine analog path, focused on delivering the most faithful possible representation of tonality, precision, and dimension.
MASTERFULLY
CONNECTED

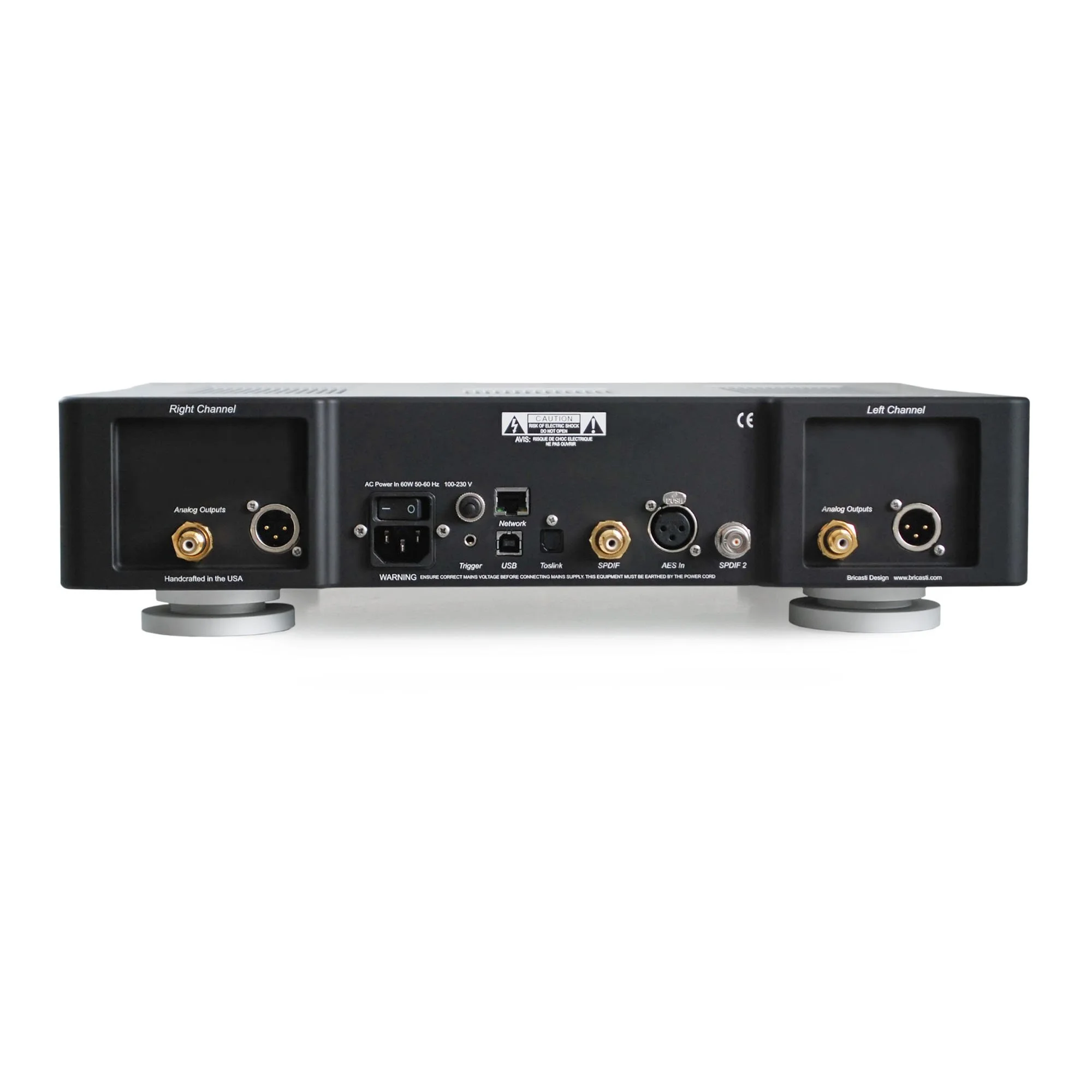

The M1S2’s digital input selection is well-appointed to integrate seamlessly into most systems. It features a fully differential design, providing a lower-resistance output signal path, ideal for pairing with the fully differential M20 preamplifier and the Bricasti range of power amplifiers.
FEATURES
MDX OS
PROCESSOR
The Bricasti MDx digital processor marks a major advancement, built on a proprietary platform developed over years of research. It enhances our entire range of digital-to-analog converters, offering greater timing accuracy, improved master clocking, and enhanced network performance. The MDx also supports DSD256 over USB.
OPTIONS
Network Player
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.
EFFORTLESS
STREAMING
The Bricasti Network Player Card, together with any software that supports UPnP, DNLA and Roon, delivers a sophisticated and flexible solution for audiophiles seeking exceptional streaming performance with effortless convenience.
VC ANALOG
VOLUME CONTROL
The optional VC Analog Volume Control card equips the Bricasti M1 Classic and M1 Series II DACs with a precision, fully analog volume control in place of digital attenuation.
This upgrade preserves resolution and dynamic range at all listening levels, allowing the DAC to function as a true control center and connect directly to a power amplifier without the need for an external preamplifier.
I2S: PURE
PERFORMANCE
The M19 Reference SACD/CD Transport features our proprietary I2S digital output, designed exclusively for Bricasti DACs. This creates a direct, reference signal traditionally used internally board-to-board. The I2S input is available as an option on all new Bricasti DACs and can be added as an upgrade for existing models.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
M1S2 TECHNICAL SPECIFICATIONS
DIGITAL INPUTS:
XLR: AES/EBU 24-bit Single Wire, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2, Ethernet (optional), I2S (optional)
SAMPLE RATES AES, SPDIF, AUX:
44.1 kHz, to, 192khz, DSD 64fs as DoP
SAMPLE RATES USB:
44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native and DoP
SAMPLE RATES ETHERNET:
44.1 kHz, to, 384kHz, DSD 64fs, 128Fs Native
JITTER:
8 psec @ 48k / 6psec @ 96k
ON BALANCED OUTPUTS
BALANCED ANALOG OUTPUTS:
XLR balanced (pin 2 hot)
IMPEDANCE:
40 ohm
OUTPUT:
@ full scale +16.5 dbm (5.2V RMS)
MAX OUTPUT LEVEL:
+22 dbm
D/A CONVERSION:
PCM 24 bit delta sigma 8x oversampling, 64x 128x 256x Native and DoP
FREQUENCY RESPONSE @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
DYNAMIC RANGE:
>120dB A-Weighted
THD+N @ 1K:
.0006% @ 0dbfs / .0004% @-30dbfs
ON UNBALANCED OUTPUTS
UNBALANCED ANALOG OUTPUTS:
RCA
IMPEDANCE:
40 ohm
OUTPUT:
Full scale at front panel +6 dbm (1.2V RMS)
MAX OUTPUT LEVEL:
+8 dbm (2V RMS)
D/A CONVERSION:
PCM 24 bit delta sigma 8x oversampling, DSD 128 Native
FREQUENCY RESPONSE @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
DYNAMIC RANGE:
>120dB A-Weighted
THD+N @ 1K:
.0006% @ 0dbfs / .0004% @-30dbfs
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS:
EMC: Complies: EN 55103-1, EN 55103-2, FCC part 15 and Class B
ROHS:
Complies with: EU RoHS Directive 2002/95/EC
SAFETY:
Certified to: IEC 60065, EN 55103-2
OPERATING TEMPERATURE:
32 F to 105 F (0 C to 40 C)
STORAGE TEMPERATURE:
-22 f to 167 F (-30 C to 70 C)
FINISH OPTIONS:
DIMENSIONS:
17” x 12.5“ x 4.5”
43,18, 31,75, 11,43 cm
SHIPPING DIMENSIONS:
22”x 17”x 7”
55,88, 43,18, 17,78 cm
WEIGHT:
15 lbs, 6.8 kg.
SHIPPING WEIGHT:
18 lbs, 8,2 kg.
MAINS VOLTAGE:
-100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
TRIGGER OUT:
TRS connector for 5V external trigger on ring.
POWER CONSUMPTION:
28 Watts (6W standby)
WARRANTY PARTS AND LABOUR:
2 years
