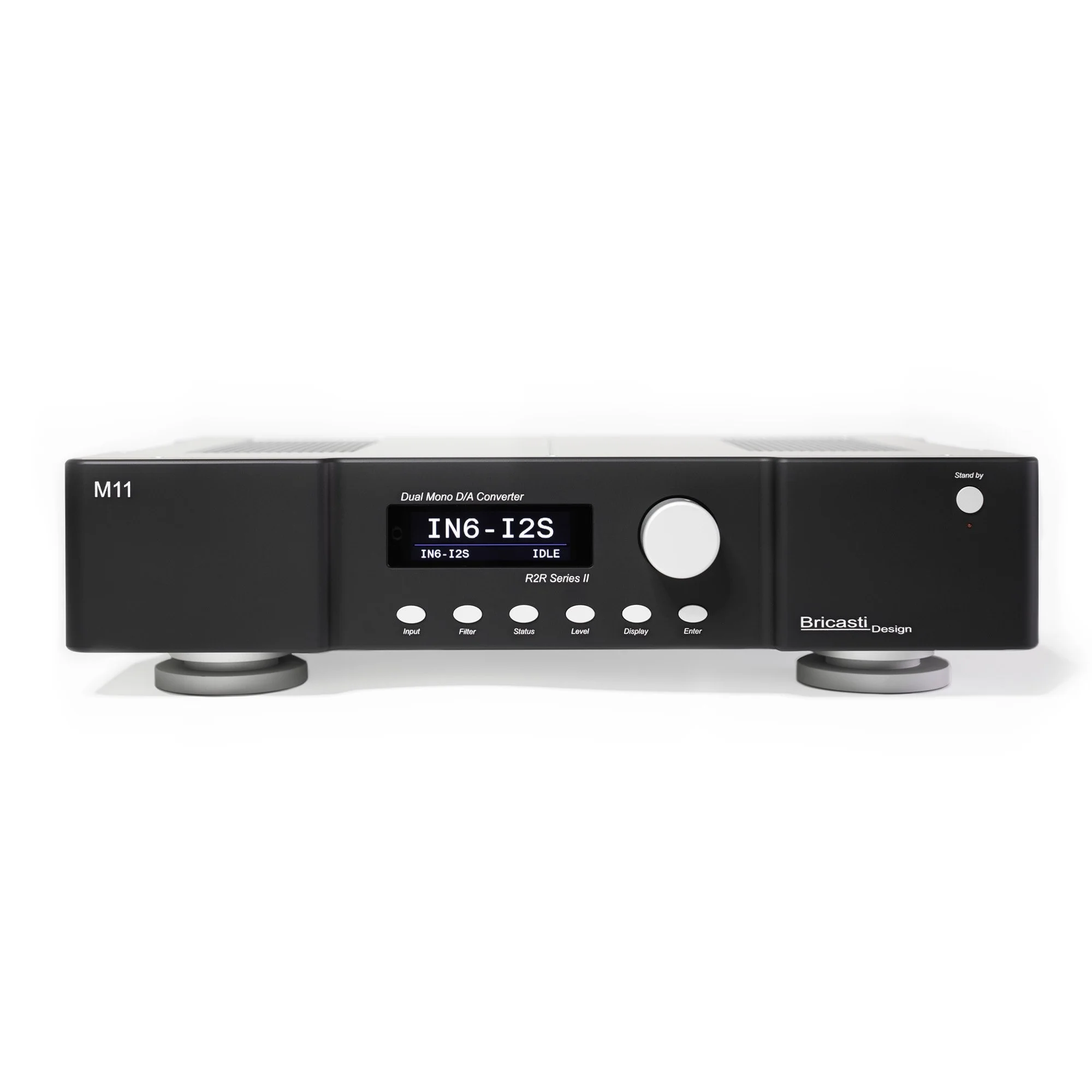

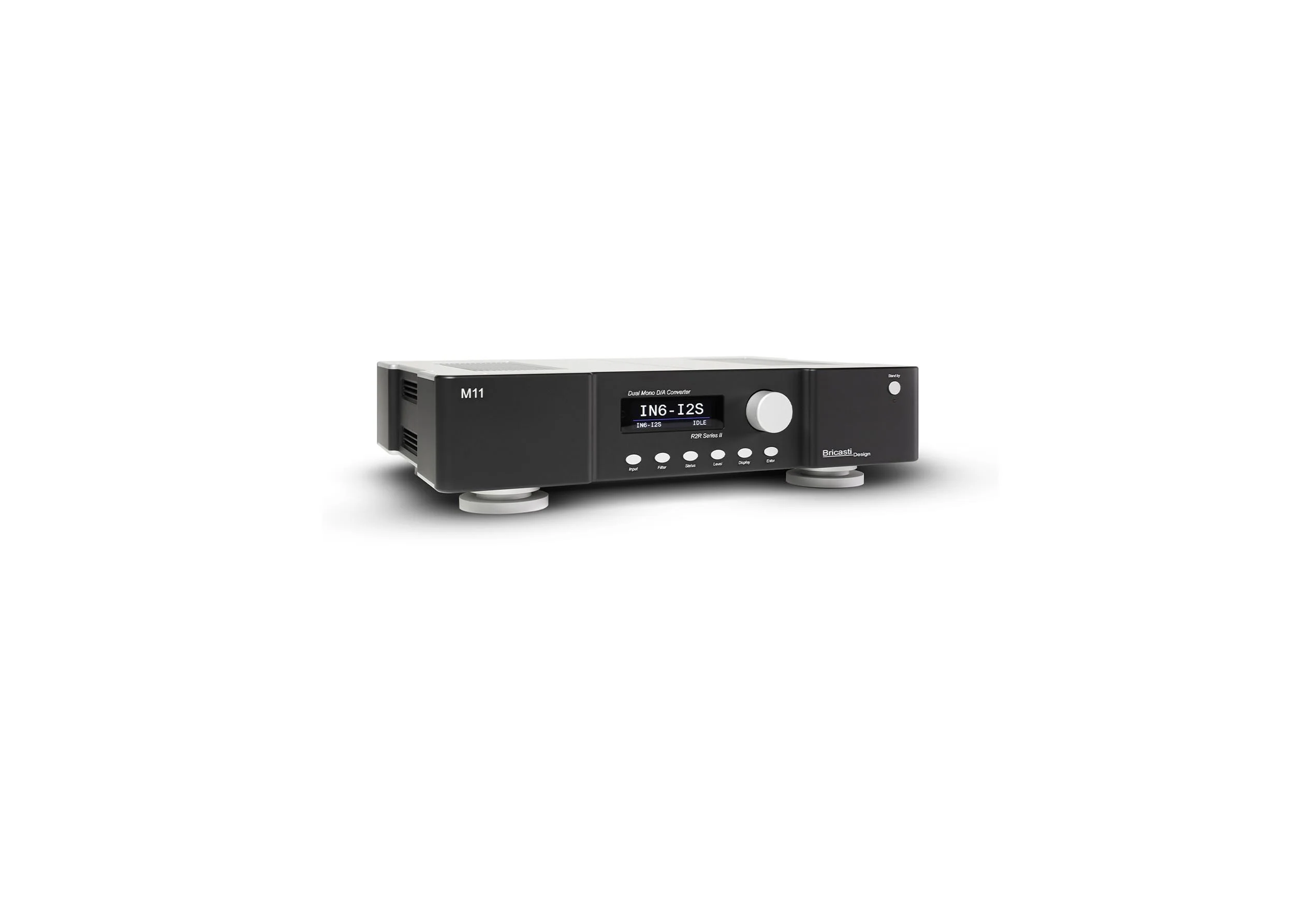

M11 SERIES II R-2R STEREO D/A
M11 CLASSIC R-2R STEREO D/A
20-bit R-2R ladder DAC providing exceptional precision and natural sound reproduction, with technology derived from the M21 flagship DAC
Enhanced power technologies incorporating advanced components from the M1 Series II for refined performance
Next-generation MDx processor delivering faster, more accurate digital signal processing for superior sound quality
Future-proof design offering upgradeability to keep pace with evolving technologies and ensure long-term performance
Superb build quality, hand-crafted by Bricasti Design in the USA
Finish available in Classic black, Argento silver, and Platinum
The Bricasti M11 Series II R-2R elevates the already impressive M11 Classic R-2R by incorporating advanced power supply technologies derived from Bricasti’s flagship M1 Series II. This upgrade delivers even greater precision and reduced noise across all stages of signal processing. The result is an enhanced, more refined listening experience without compromising the 20-bit R-2R ladder conversion technology that defines the M11 Series II.
ULTIMATE R-2R
PERFORMANCE
At the heart of the M11 Series II is the MDx processor, supported by Bricasti’s renowned clocking expertise and precise filter refinement, ensuring flawless timing, accuracy, and exceptional clarity. This combination allows the M11 Series II to handle even the most demanding audio sources while delivering the natural musicality and transparency Bricasti is known for.
PERFECTLY
CONNECTED
Like the original M11, the M11 Series II offers seamless integration with high-quality servers and the M19 SACD/CD transport. The inclusion of I2S connectivity enables audiophiles to create a perfectly synchronized high-resolution digital system, delivering the highest levels of performance and clarity.
CRAFTED BY
SKILLED ARTISANS
Handcrafted with the same attention to detail and future-proof architecture as its predecessors, the M11 Series II provides an upgradeable platform designed to adapt to new technologies, ensuring it continues to set new standards in digital audio for years to come.
FEATURES
MDX OS
PROCESSOR
The Bricasti MDx digital processor marks a major advancement, built on a proprietary platform developed over years of research. It enhances our entire range of digital-to-analog converters, offering greater timing accuracy, improved master clocking, and enhanced network performance. The MDx also supports DSD256 over USB.
OPTIONS
Network Player
The optional Network player offers one of the most sonically advantages avenues for audio playback created in the last decade, with pristine data transmission over long distances, without loss of signal or degradation from cable runs. This means your server can be located anywhere on the network rather than in your listening space, creating a clutter-free listening environment and ground-breaking performance.
EFFORTLESS
STREAMING
The Bricasti Network Player Card, together with any software that supports UPnP, DNLA and Roon, delivers a sophisticated and flexible solution for audiophiles seeking exceptional streaming performance with effortless convenience.
I2S: PURE
PERFORMANCE
The M19 Reference SACD/CD Transport features our proprietary I2S digital output, designed exclusively for Bricasti DACs. This creates a direct, reference signal traditionally used internally board-to-board. The I2S input is available as an option on all new Bricasti DACs and can be added as an upgrade for existing models.
Handcrafted in the USA
All of our products are crafted in the old world tradition, in a classic brick mill building in Massachusetts USA by a team of individuals dedicated to excellence.
M11 SERIES II R-2R TECHNICAL SPECIFICATIONS

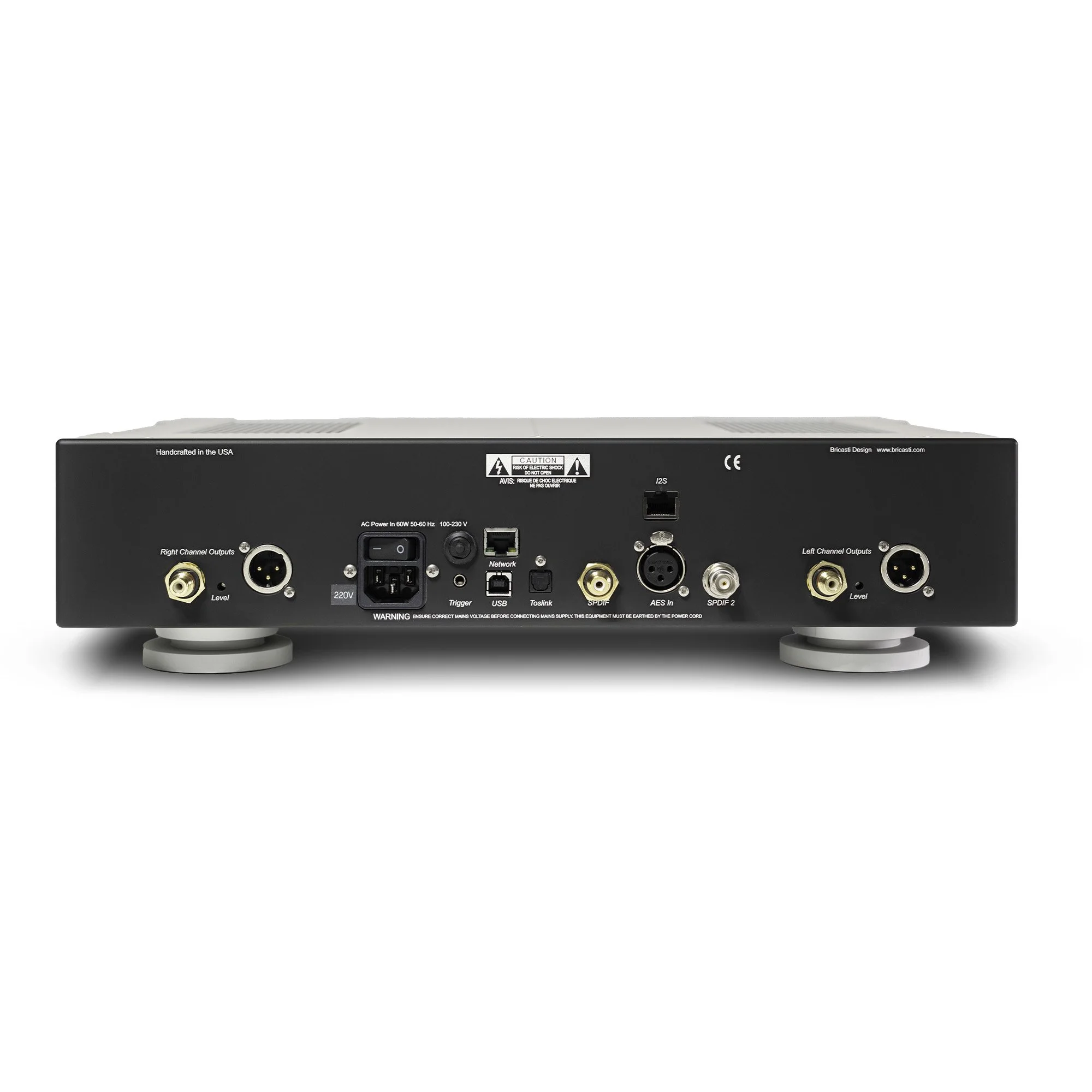

DIGITAL INPUTS:
XLR: AES/EBU 24-bit Single Wire, RCA: SPDIF, Optical: Toslink 44.1- 96k, USB 2, Ethernet (optional), I2S (optional)
SAMPLE RATES AES, SPDIF, AUX:
44.1 kHz, to, 192khz, DSD 64fs as DoP
SAMPLE RATES USB:
44.1 kHz, to, 384kHz, DSD 64fs 128Fs 256Fs Native and DoP
SAMPLE RATES ETHERNET:
44.1 kHz, to, 384kHz, DSD 64fs, 128Fs Native and DoP
JITTER:
8 psec @ 48k / 6psec @ 96k
ON BALANCED OUTPUTS
BALANCED ANALOG OUTPUTS:
XLR balanced (pin 2 hot)
IMPEDANCE:
40 ohm
OUTPUT:
Internally selectable +13.5 dbm or +10 dbm
D/A CONVERSION:
20-bit Ladder type
FREQUENCY RESPONSE @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
DYNAMIC RANGE:
>120dB A-Weighted
THD+N @ 1K:
.0020% @ 0dbfs
ON UNBALANCED OUTPUTS
UNBALANCED ANALOG OUTPUTS:
RCA
IMPEDANCE:
40 ohm
OUTPUT:
+8 dbm (2V RMS)
D/A CONVERSION:
20-bit Ladder type
FREQUENCY RESPONSE @44.1k:
10 Hz- 20 kHz +0dB, -.2 dB
DYNAMIC RANGE:
>120dB A-Weighted
THD+N @ 1K:
.0020% @ 0dbfs
GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS:
EMC: Complies: EN 55103-1, EN 55103-2, FCC part 15 and Class B
ROHS:
Complies with: EU RoHS Directive 2002/95/EC
SAFETY:
Certified to: IEC 60065, EN 55103-2
OPERATING TEMPERATURE:
32 F to 105 F (0 C to 40 C)
STORAGE TEMPERATURE:
-22 f to 167 F (-30 C to 70 C)
FINISH OPTIONS:
DIMENSIONS:
17” x 12.5“ x 4.5”
43,18, 31,75, 11,43 cm
SHIPPING DIMENSIONS:
22”x 17”x 7”
55,88, 43,18, 17,78 cm
WEIGHT:
15 lbs, 6.8 kg.
SHIPPING WEIGHT:
18 lbs, 8,2 kg.
MAINS VOLTAGE:
-100, 120, 220, 240 VAC, 50 Hz – 60 Hz factory set
TRIGGER OUT:
TRS connector for 5V external trigger on ring.
POWER CONSUMPTION:
28 Watts (6W standby)
WARRANTY PARTS AND LABOUR:
2 years
